A$31,062.00
The Frontier six-wheeled amphibious vehicle is the starting point for our XTV lineup — a point that demonstrates the high standards at ARGO. The Frontier 650 6x6 delivers the same dependable power and reliability of their bigger siblings to maximize your ability in the woods, mud or water. Our Classic transmission with ARGO Progressive Steering (APS) and the addition of the new Instant Torque Clutch (ITC) provide smooth handling for both new and seasoned outdoor enthusiasts. Feel in control, safe and excited at all times. The new ‛22 Frontier 650 6x6 continues to rise above the industry’s standard definition of entry-level.
*subject to lending terms, conditions and approval*
Does not include delivery or other fees.

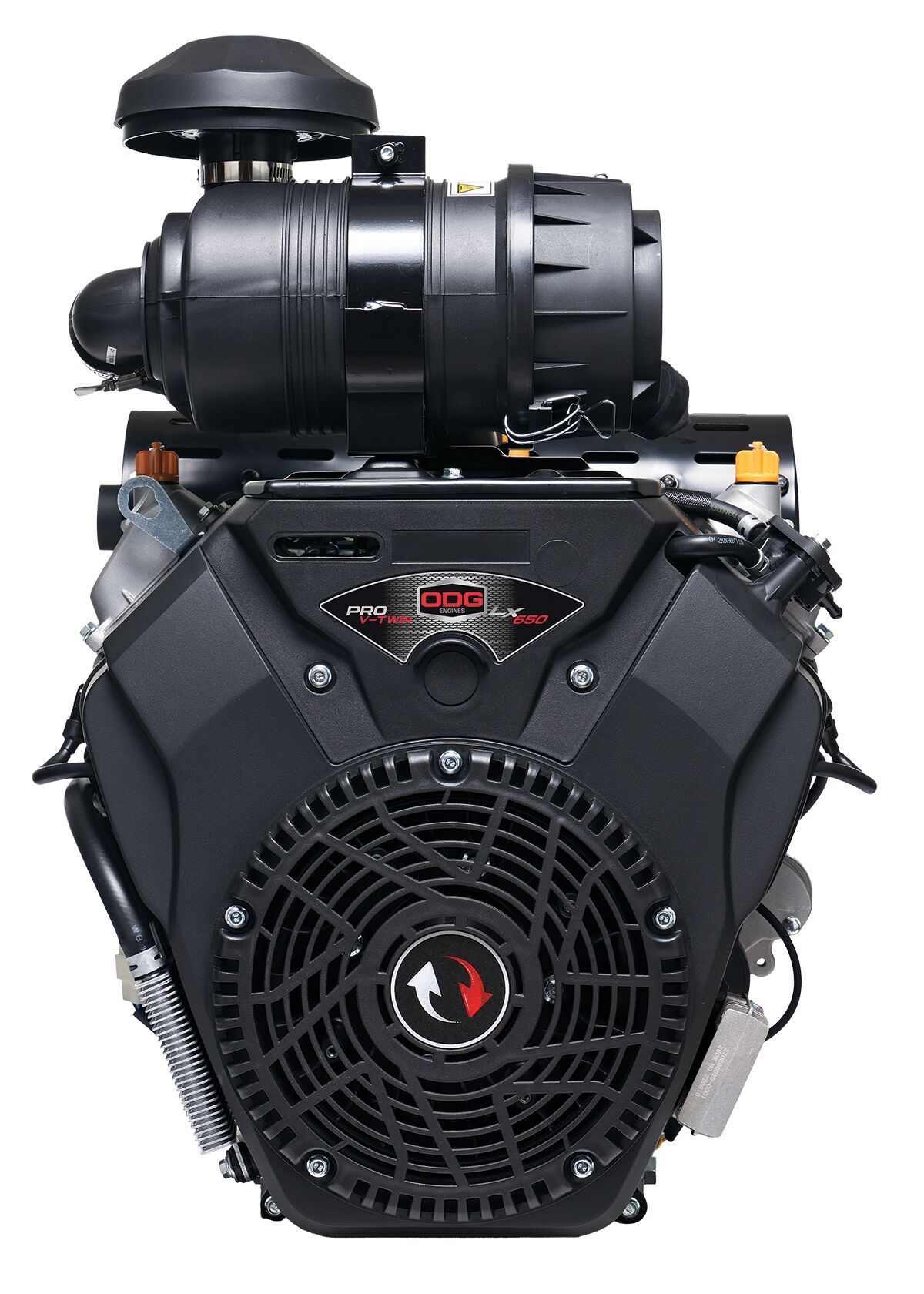

LX 650 ENGINE

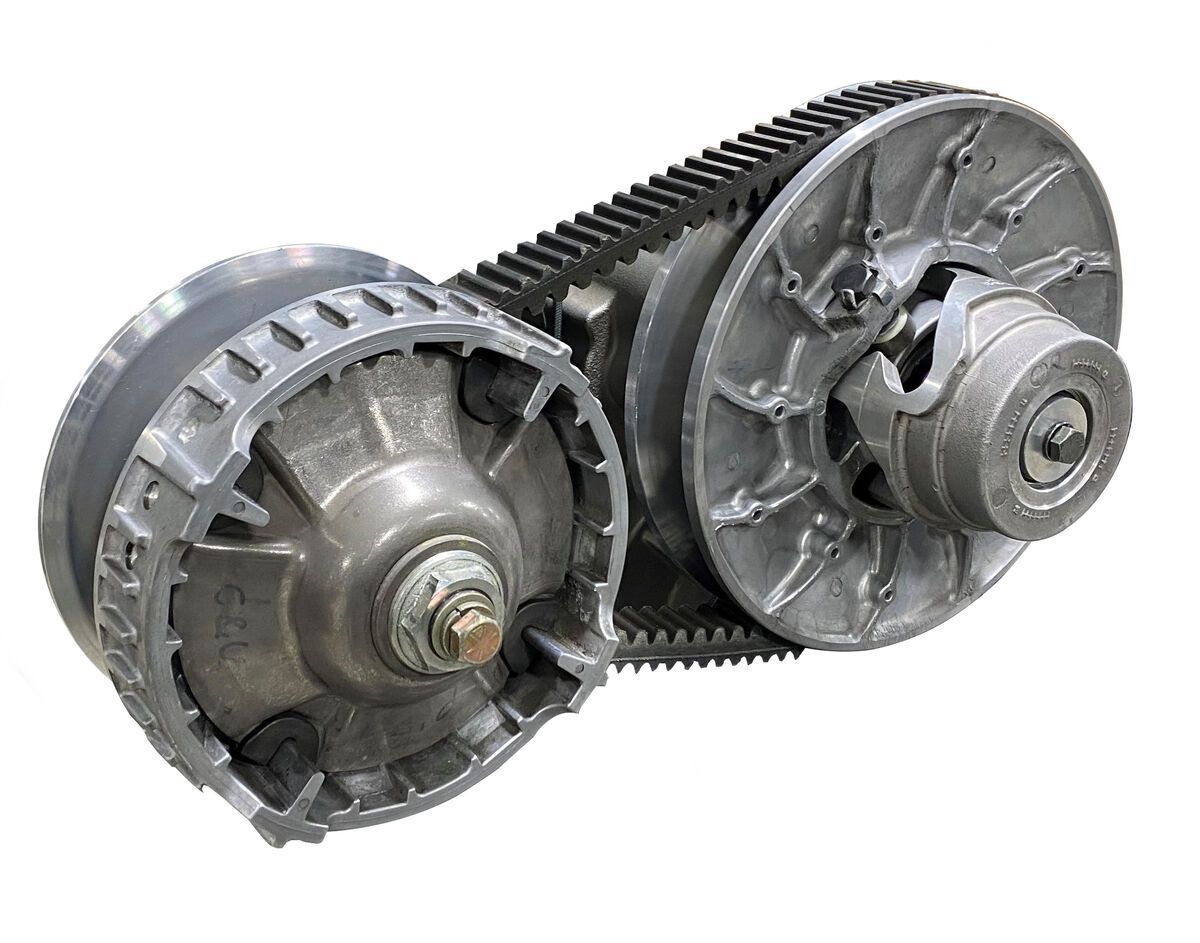

INSTANT TORQUE CLUTCH (ITC)
The ARGO Instant Torque Drive System (ITDS) dramatically improves low-end torque and increases acceleration. The Instant Torque Clutch (ITC) is designed to provide the optimal gear ratio, shifting seamlessly throughout the full range to utilize the massive torque and power of our engines.

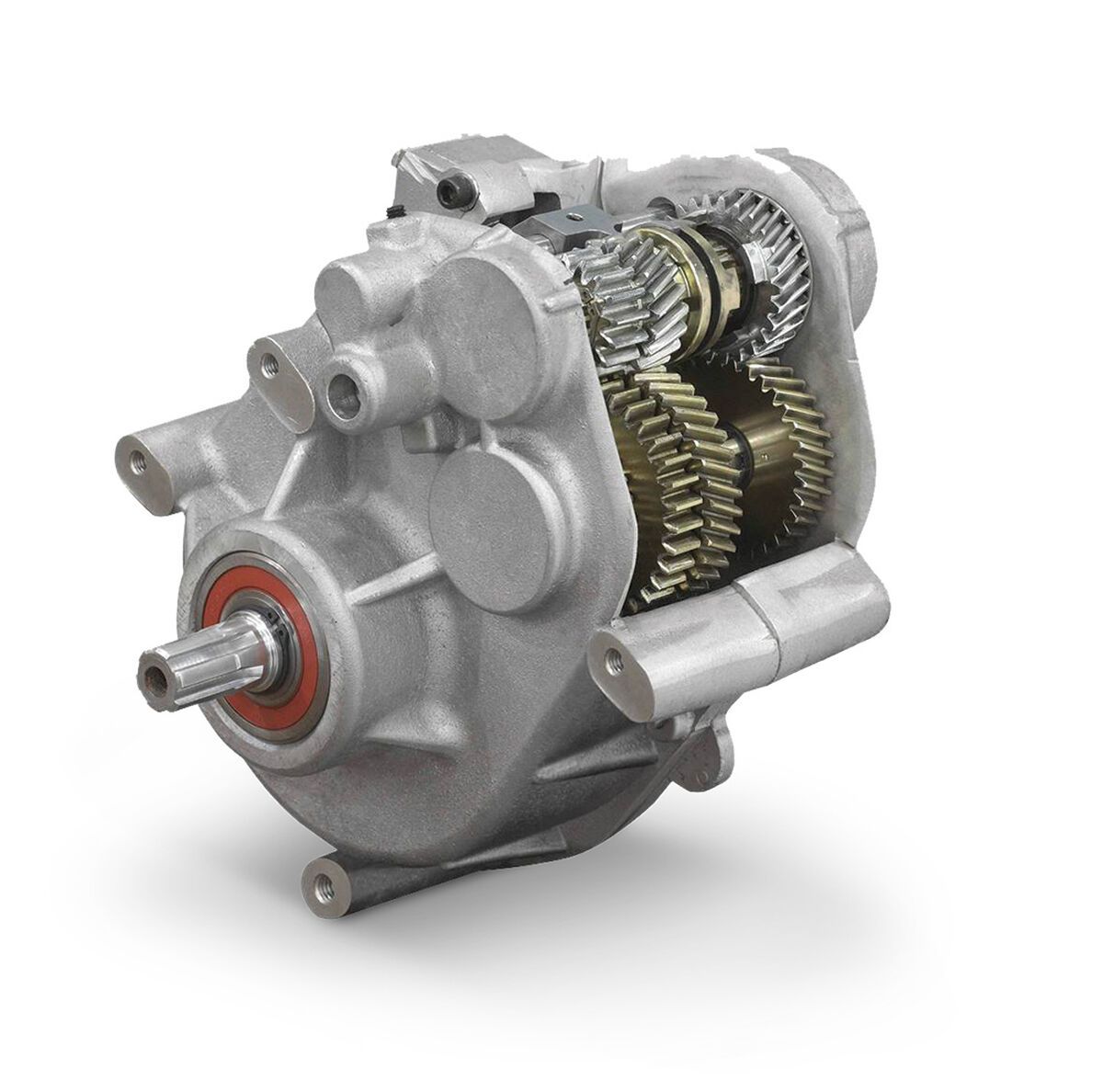

CLASSIC TRANSMISSION WITH APS
The ARGO Classic transmission is our simplest design and operates like a mechanical skid steer, which gives it incredible maneuverability. In order to provide vehicle steering, braking force is applied directly to the output of the appropriate side of the transmission based on operator steering input. In both high and low range, the Classic transmission provides zero-radius turns to get you in and around extreme terrain.
ARGO Progressive Steering (APS) with the Classic transmission achieves a smooth and comfortable drive experience to all XTVs in the Frontier Series.

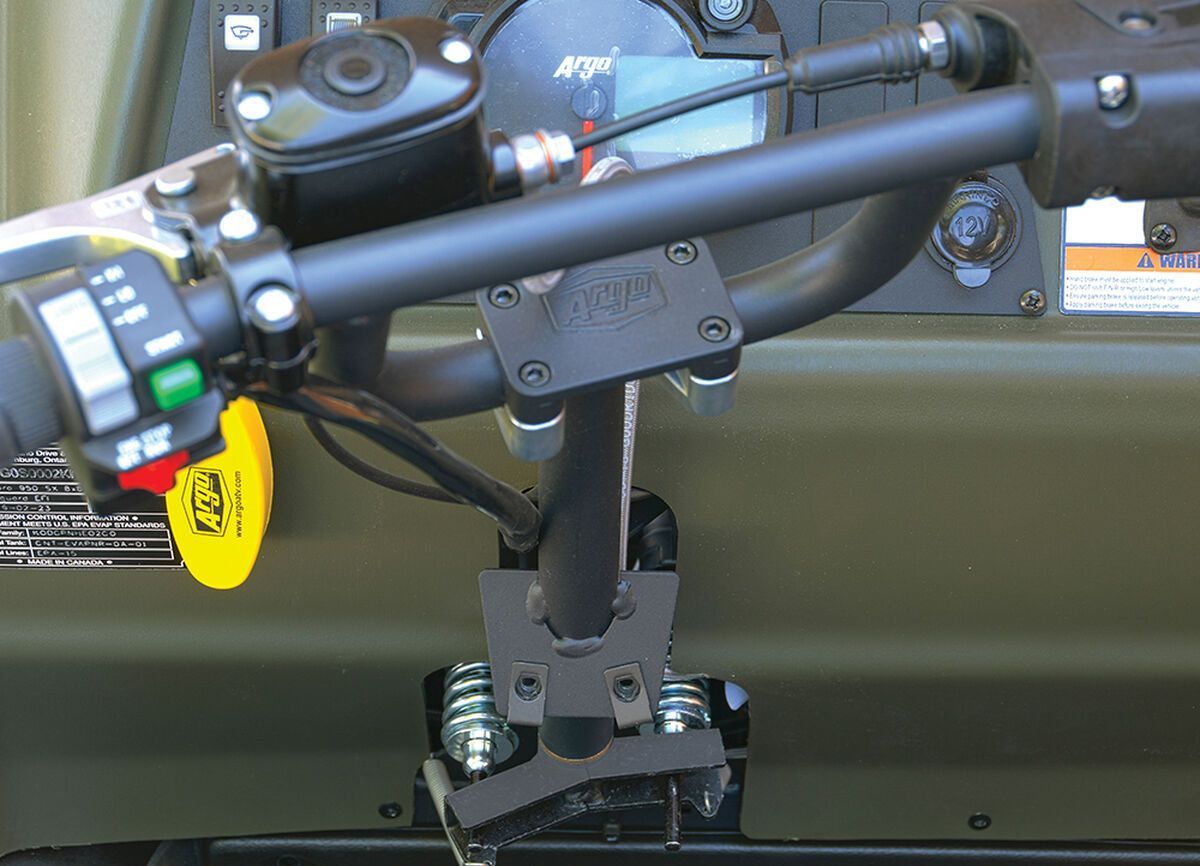

ARGO PROGRESSIVE STEERING (APS)

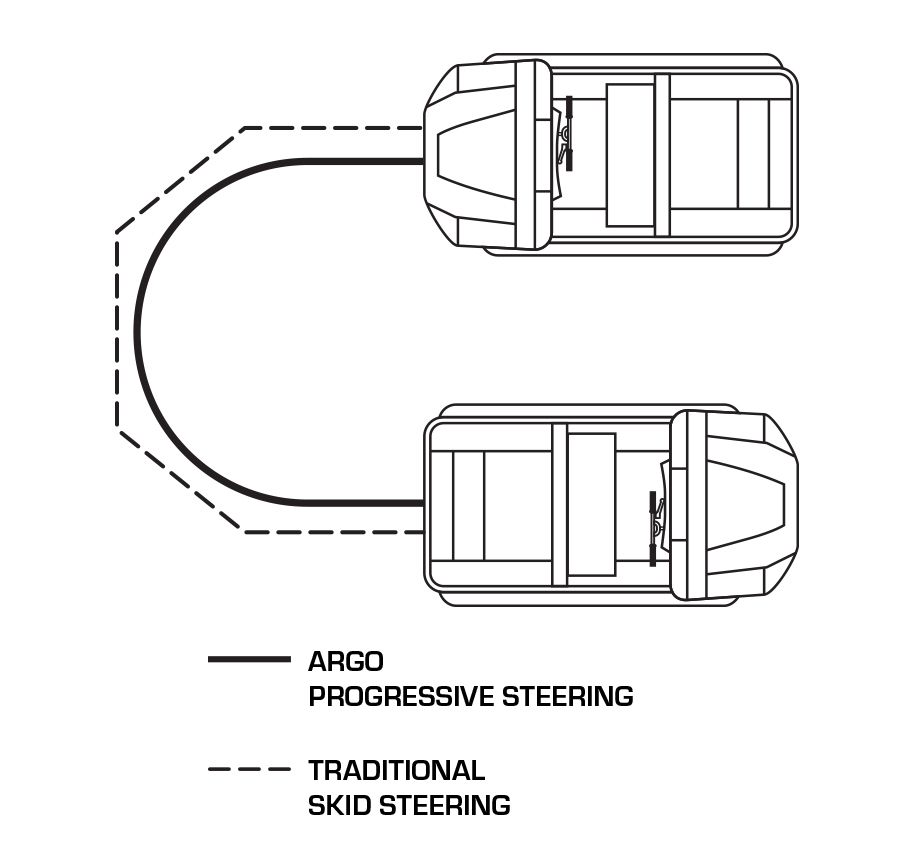

APS is an innovation in the area of braking force application to the transmission steering differential. By adding a spring element between the handlebars and the brake system we achieved a progressive, dual-rate steering system. Steering events are now effortless with an increase of 4X wider range of steering motion, offering the smoothest turning available in an ARGO XTV. APS makes it as fun and comfortable to drive as any UTV.

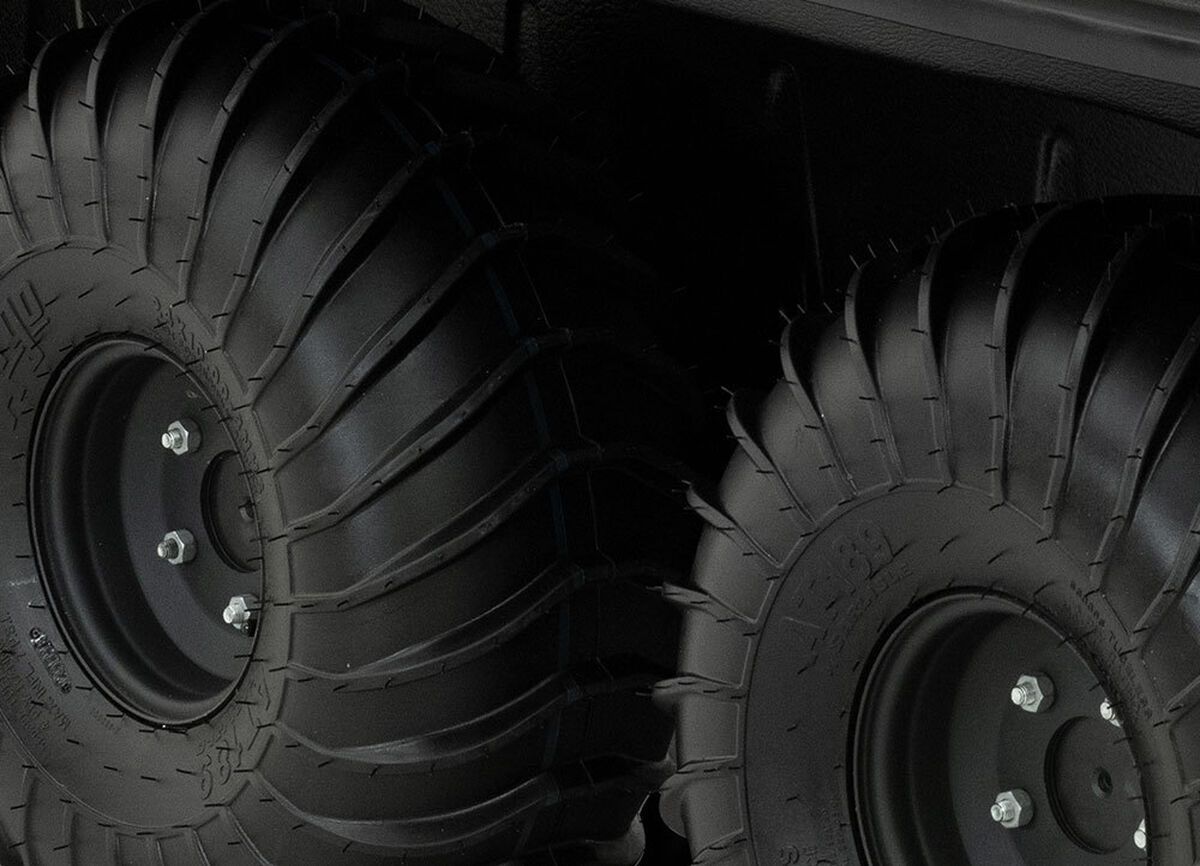

STEEL RIMS AND TIRES
Steel offset rims with low-pressure 24” tires are custom engineered with a paddle design for amphibious propulsion through water and optimized traction on the most extreme off-road terrain.

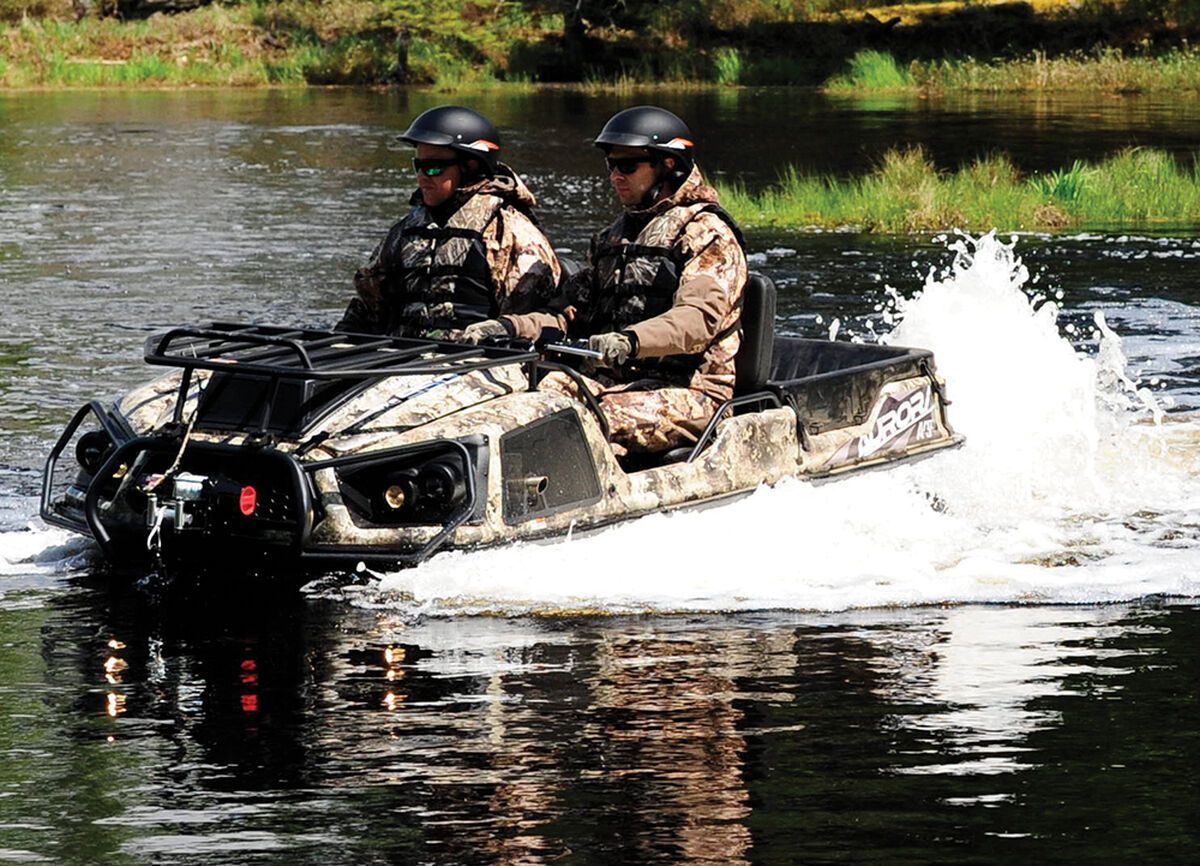

AMPHIBIOUS BODY
SPECIFICATIONS
- ENGINE: LX 650
- CYLINDER: V-TWIN
- FUEL SYSTEM: CARBURETOR
- COOLING: FAN COOLED
- ALTERNATOR OUTPUT (MAX): 20 AMPS
- CHASSIS: 6X6
- SERVICE BRAKES: HYDRAULIC
- STEERING BRAKES: HYDRAULIC
- AUTO CHAIN LUBRICATION: N/A
- EASY ACCESS GREASE SYSTEM (EAGS): STANDARD
- BRAKE COOLING FAN: ACCESSORY
- TRANSMISSION: CLASSIC W/APS
- DRIVE BELT: STANDARD DUTY
- FULL SKID PLATE: STANDARD
- BRUSHGUARD: ACCESSORY
- WINCH: ACCESSORY
- FRONT RACK: ACCESSORY
- CARGO BOX: N/A
- BILGE PUMP: STANDARD
- LOAD CAPACITY - LAND: 570 lb (258 kg)
- LOAD CAPACITY - WATER: 370 lb (168 kg)
- TOWING CAPACITY: 1,200 lb (544 kg)
- SEATING CAPACITY - LAND: 4
- SEATING CAPACITY - WATER: 2
- FUEL CAPACITY: 8.5 gal (32 L)
- SPEED - LAND: 22 mph (35 Km/h)
- SPEED - WATER: 3 mph (5 Km/h)
- WEIGHT: 970 lb (440 kg)
- LENGTH (includes winch when standard): 96 in (2,439 mm)
- WIDTH: 58 in (1,473 mm)
- HEIGHT: 51 in (1,295 mm)
- AXLE BEARING EXTENSIONS: N/A
- ENTRY STEP: ACCESSORY
- TIRES: ARGO XT115 24X10-8
- WHEEL: STEEL OFFSET
- GROUND PRESSURE (18" RUBBER TRACKS): 0.73 psi (5 kPa)
- GROUND CLEARANCE (TIRES): 10 in (254 mm)
- GROUND CLEARANCE (TRACKS): 11 in (279 mm)
- WARRANTY: 1 YEAR
- COLORS: GREEN, BLACK, ORANGE
