COMING TO GETCHA.
When you’re out on the hunt, it can sometimes feel like that pelt-wearing prey is toying with you, taunting from just beyond where you are. Thanks to the Conquest Outfitter, "beyond" now feels like it’s delivered right to your doorstep.
With a dependable VX 950 V-Twin EFI fan-cooled engine and the smooth Instant Torque Clutch (ITC), those out-of-reach spots, including high altitudes, are now your playground. Camp operators, lodge owners and big-game guides will also find much to like here, as these pack mules are eager to shoulder the big loads. Bring some bigger straps, it’s going to be a big year.
*subject to lending terms, conditions and approval*
Does not include delivery or other fees.
VX 950 ENGINE


INSTANT TORQUE CLUTCH (ITC)
The ARGO Instant Torque Drive System (ITDS) dramatically improves low-end torque and increases acceleration. The Instant Torque Clutch (ITC) is designed to provide the optimal gear ratio, shifting seamlessly throughout the full range to utilize the massive torque and power of our engines.
ADMIRAL TRANSMISSION
The ARGO Admiral transmission uses complex gearing, including dual differentials on the output shafts. When steering, the braking force is not applied to the output shafts but to a steering differential, which translates to a vastly different driving experience.
While steering in high gear, the output shafts rotate at a 3:1 ratio, yielding smoother, gentler steering events. Selecting low range enables operation similar to a traditional skid steer vehicle offering a zero-radius turn.

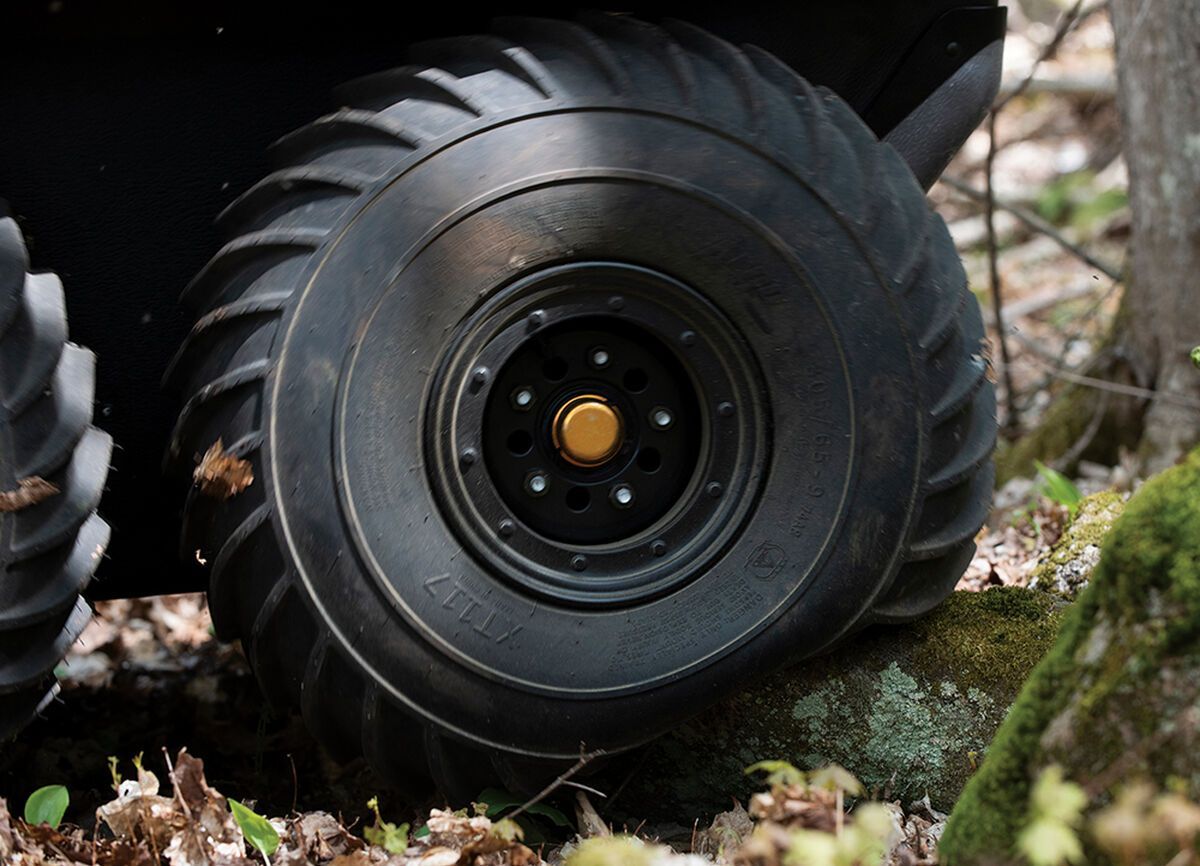

25" AMPHIBIOUS TIRES ON BEADLOCK STEEL RIMS
The Conquest Outfitter has 25” XT117 ARGO-only mud tires with steel rims. The chevron treads maximize your power in thick mud and increase your propulsion in whatever waterway you decide to drive in.
REDUCED UNDERHOOD TEMPERATURE


HEAVY-DUTY STEEL FRONT RACK
TRUETIMBER PRAIRIE CAMO


AMPHIBIOUS BODY

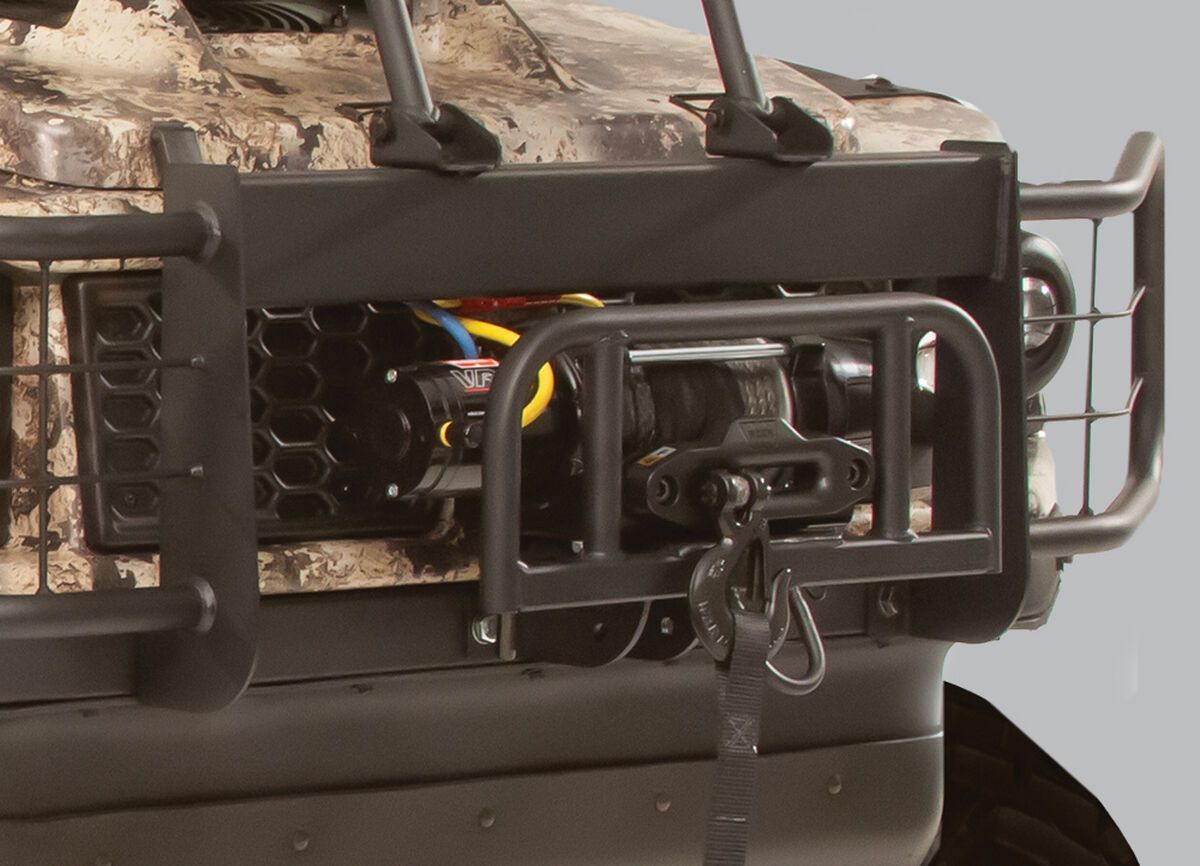

WINCH AND BRUSHGUARD
Yes, this XTV floats. The one-piece amphibious lower body is the signature ARGO design feature. Its smooth, durable underbody floats over potential snags, stumps and outcrops, as well as swamps and water.

SPECIFICATIONS
- ENGINE: VX 950
- CYLINDER: V-TWIN
- FUEL SYSTEM: EFI
- COOLING: FAN COOLED
- ALTERNATOR OUTPUT (MAX): 50 AMPS
- CHASSIS: 8X8
- SERVICE BRAKES: HYDRAULIC
- STEERING BRAKES: HYDRAULIC
- AUTO CHAIN LUBRICATION: STANDARD
- EASY ACCESS GREASE SYSTEM (EAGS): STANDARD
- BRAKE COOLING FAN: N/A
- TRANSMISSION: ADMIRAL
- DRIVE BELT: HEAVY DUTY
- FULL SKID PLATE: STANDARD
- BRUSHGUARD: STANDARD
- WINCH: 4,000 lb
- FRONT RACK: STANDARD
- CARGO BOX: N/A
- BILGE PUMP: STANDARD
- ROPS: N/A
- STRETCHER FRAME: N/A
- REAR MESH: N/A
- ROOF: N/A
- POWER DUMP BOX: N/A
- LOAD CAPACITY - LAND: 1,170 lb (531 kg)
- LOAD CAPACITY - WATER: 470 lb (213 kg)
- TOWING CAPACITY: 2,000 lb (907 kg)
- SEATING CAPACITY - LAND: 6
- SEATING CAPACITY - WATER: 2
- FUEL CAPACITY: 8.5 gal (32 L)
- SPEED - LAND: 17 mph (27 Km/h)
- SPEED - WATER: 3 mph (5 Km/h)
- WEIGHT: 1,930 lb (875kg)
- LENGTH (includes winch when standard): 125 in (3,175 mm)
- WIDTH: 65 in (1,651 mm)
- HEIGHT: 53 in (1,346 mm)
- AXLE BEARING EXTENSIONS: N/A
- ENTRY STEP: DUAL REAR ENTRY STEPS
- TIRES: ARGO XT117 25X12-9
- WHEEL: STEEL BEADLOCK
- GROUND PRESSURE (18" RUBBER TRACKS): 1.06 psi (7.3 kPa)
- GROUND CLEARANCE (TIRES): 9 in (228 mm)
- GROUND CLEARANCE (TRACKS): 10 in (254 mm)
- WARRANTY: 1 YEAR
- COLORS: TRUETIMBER PRAIRIE CAMO
